FCS-185

Snap Ring Pliers Internal Close (Straight)

  • WITH SPRING

Use
・ C-type snap ring (snap ring) attachment / detachment tool for machine tools and electronic equipment.
・ The tip closes when gripping.
・ For shaft / straight nail
Features
-Since the tip of the claw is processed into a reverse taper shape, the snap ring is securely caught and does not slide down.
・ The nail can be replaced with one screw.

  • 仕様
  • 用途
SIZE(mm) 185mm
重量(g/w) 175g/w
先端の直径 mm 2
リング使用範囲 mm 12-65mm
パッケージサイズ (H x W x D mm) 223×73×20
入数 6
JANコード 4952520040034
a 183mm
b 22mm
c 10mm
d 52mm
f 30mm
交換バネ、部品情報 FB-1,FS-1,FS-L1,FS-L2

The tip of the claw is processed into a reverse taper shape, so it catches the snap ring securely and does not slip off.

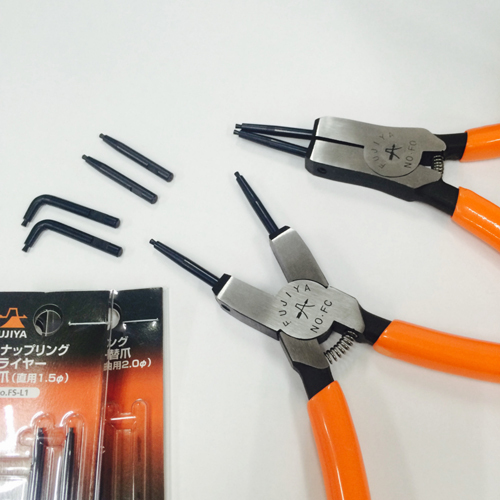

Detachable claws

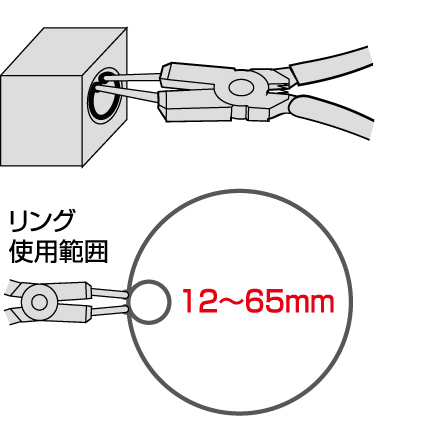

Useable size of ring.
