790-175
Diagonal Cutting Nippers
The blade is thinner than the standard model and has a specialized cut.
*due to the blade being thin, these nippers will not cut through piano wire, spring wire, and wire cable.
HOME > PRODUCT > NIPPERS > 790-175
The blade is thinner than the standard model and has a specialized cut.
*due to the blade being thin, these nippers will not cut through piano wire, spring wire, and wire cable.
| Size(mm) | 175mm |
|---|---|
| Weight(g/w) | 240g/w |
| Cuttinng Performance Coppre wire | Φ3.0 |
| Cuttinng Performance VA/VFF wire | Φ2.0mm×3 core |
| Package size (H x W x D mm) | 223×73×20 |
| Set Include | 6 |
| JAN | 4952520077153 |

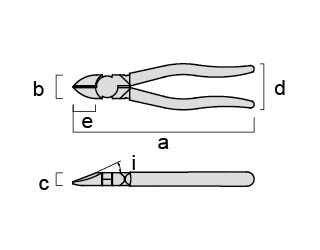

| a | 186mm |
| b | 24mm |
| c | 13mm |
| d | 47.5mm |
| e | 25.9mm |
| i | 22° |

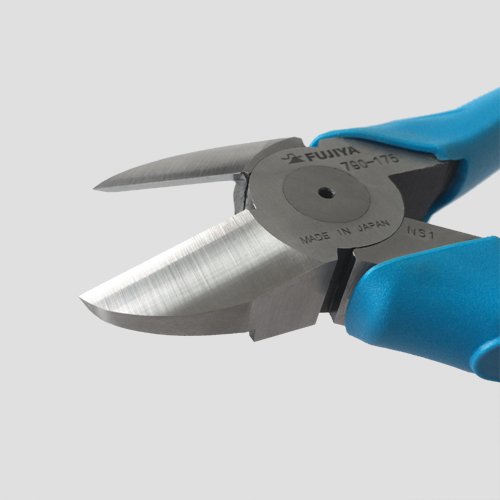

Micro Mirror Blade:
the leading edge of polishing technology developed by FUJIYA, which achieve very keen blade and beautiful cut cross section.

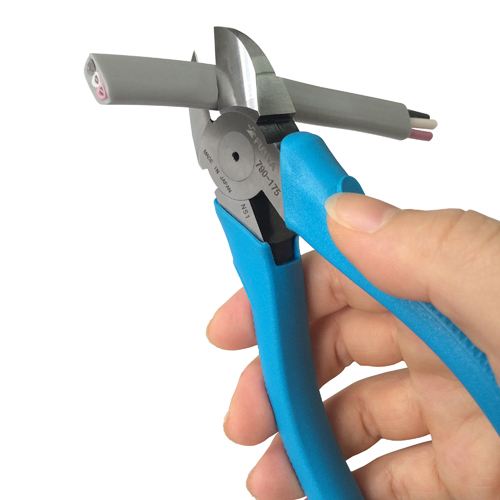

Because it is less frictional resistance against the coating resin such as VCTF / VCT wire, it can be cut smoothly.

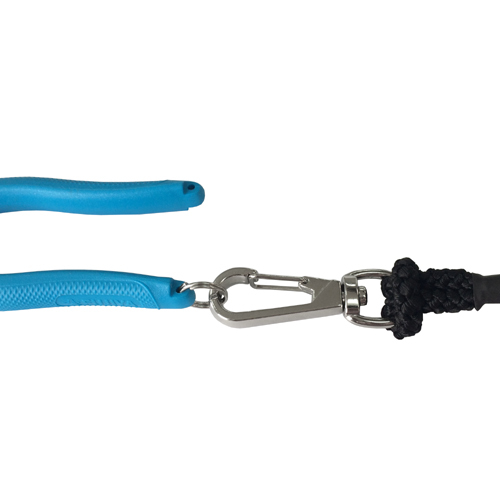

A hole for safety code
