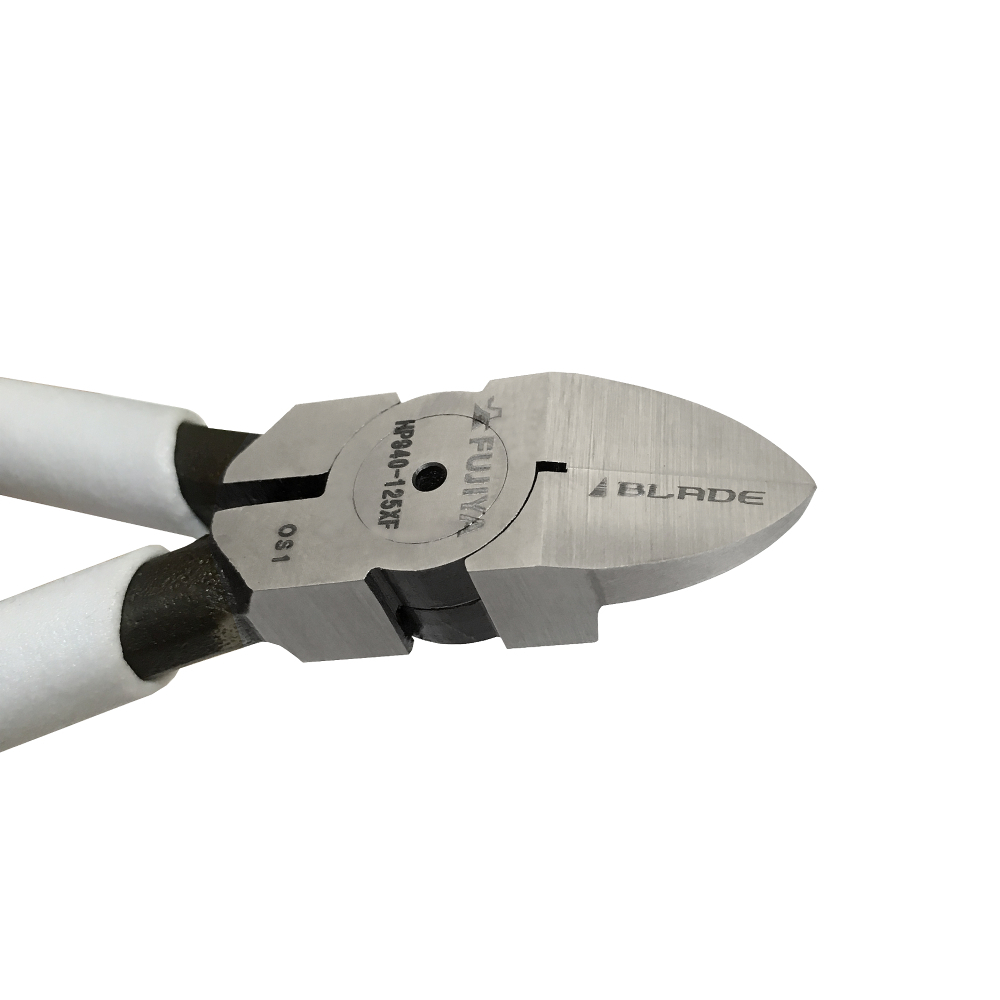

HP940-125XF

Plastic Cutting Nippers

  • STRAIGHT BLADES
  • WITH SPRING
  • ROHS

Most suitable for cutting hard plastic, such as engineering plastic materials (POM, PA, PC, etc.).

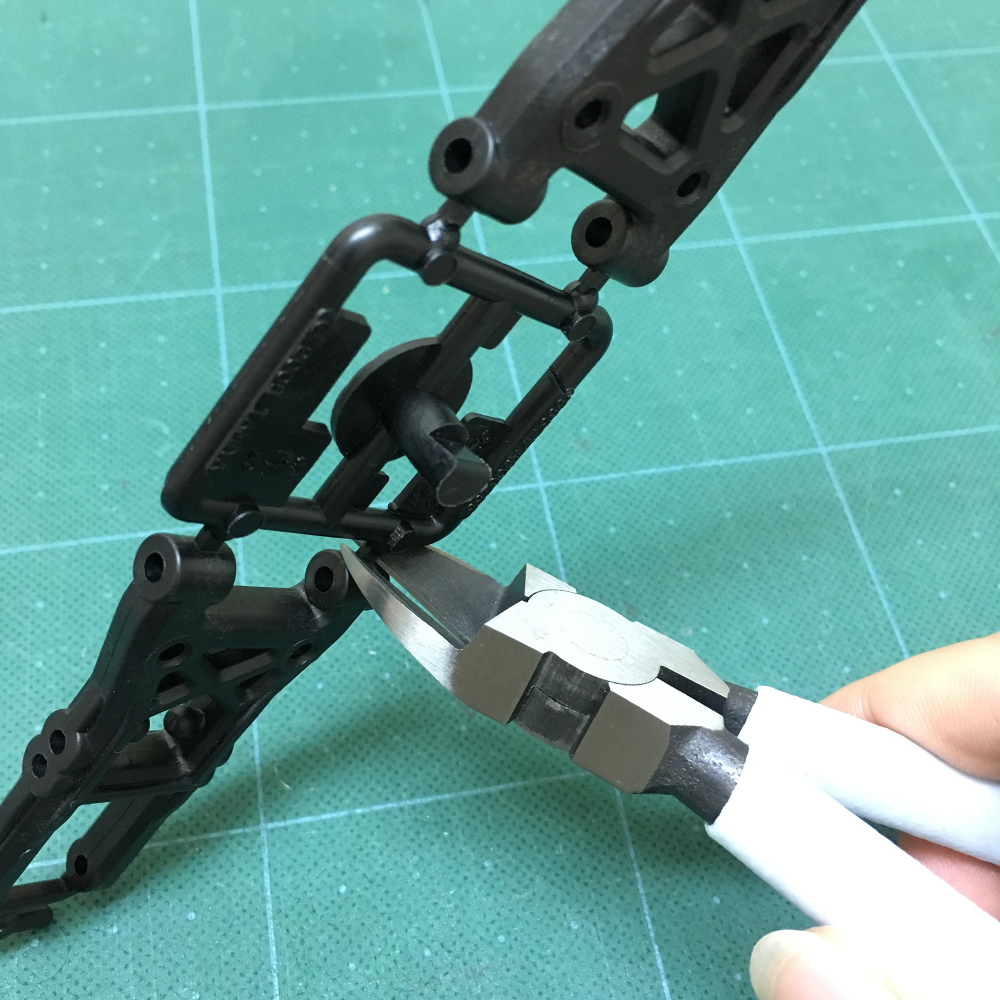

Ideal for gate cutting works in injection molding.

- Single-edged blades enable to “slice off” plastic without leaving a flash on the cut section.
- Coil spring is mounted for continuous cutting work.
- Round blades type: HP940-125XR is also available.

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 131mm
Weight(g/w) 90g/w
Cuttinng Performance Plastic Hard resin DIA 3.0mm
Package size (H x W x D mm) 170x73x14mm
Set Include 6 pcs
JAN 4952520009284

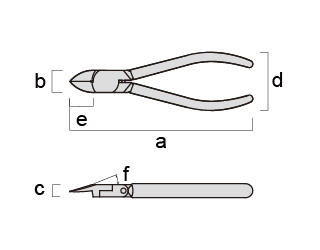

a 131mm
b 15.5mm
c 9mm
d 50mm
e 16mm
f 15mm

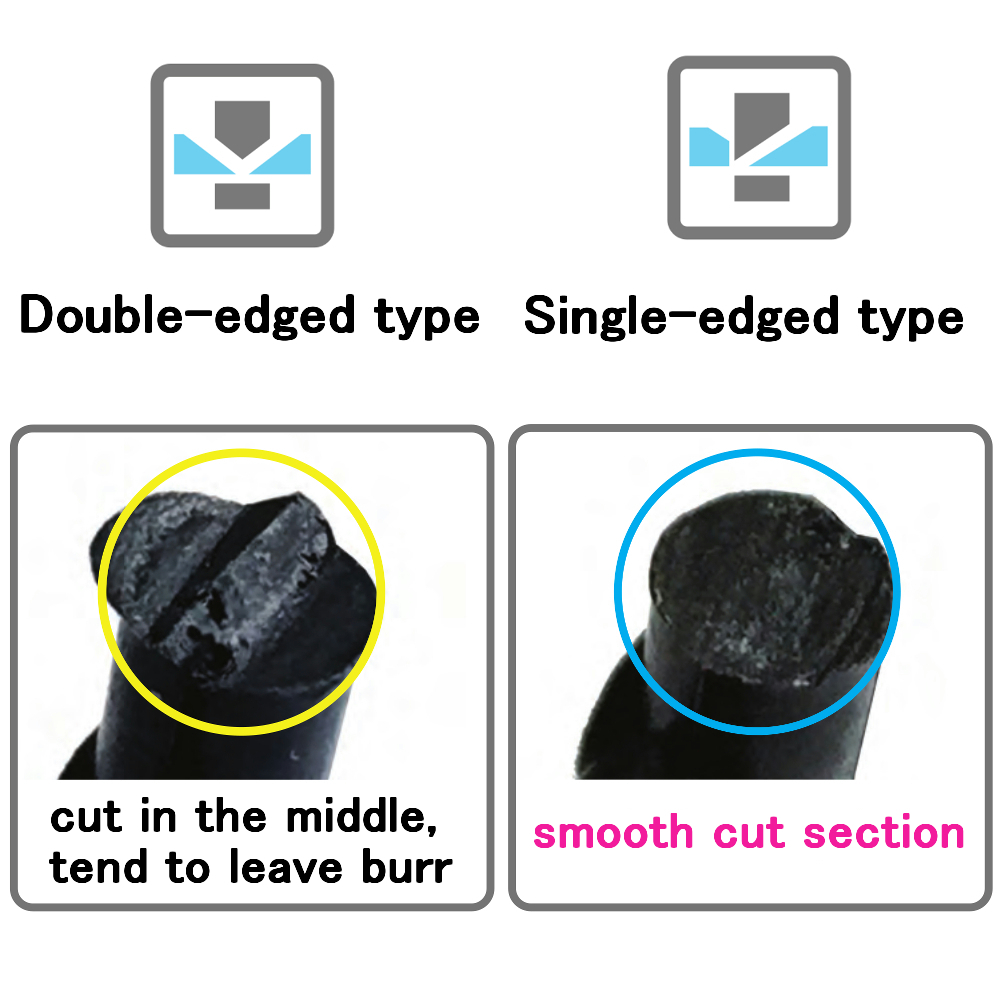

Blades are single edge type.
suitable for gate cutting work in engineering plastic (ABS, PC, Polyamide) molding.

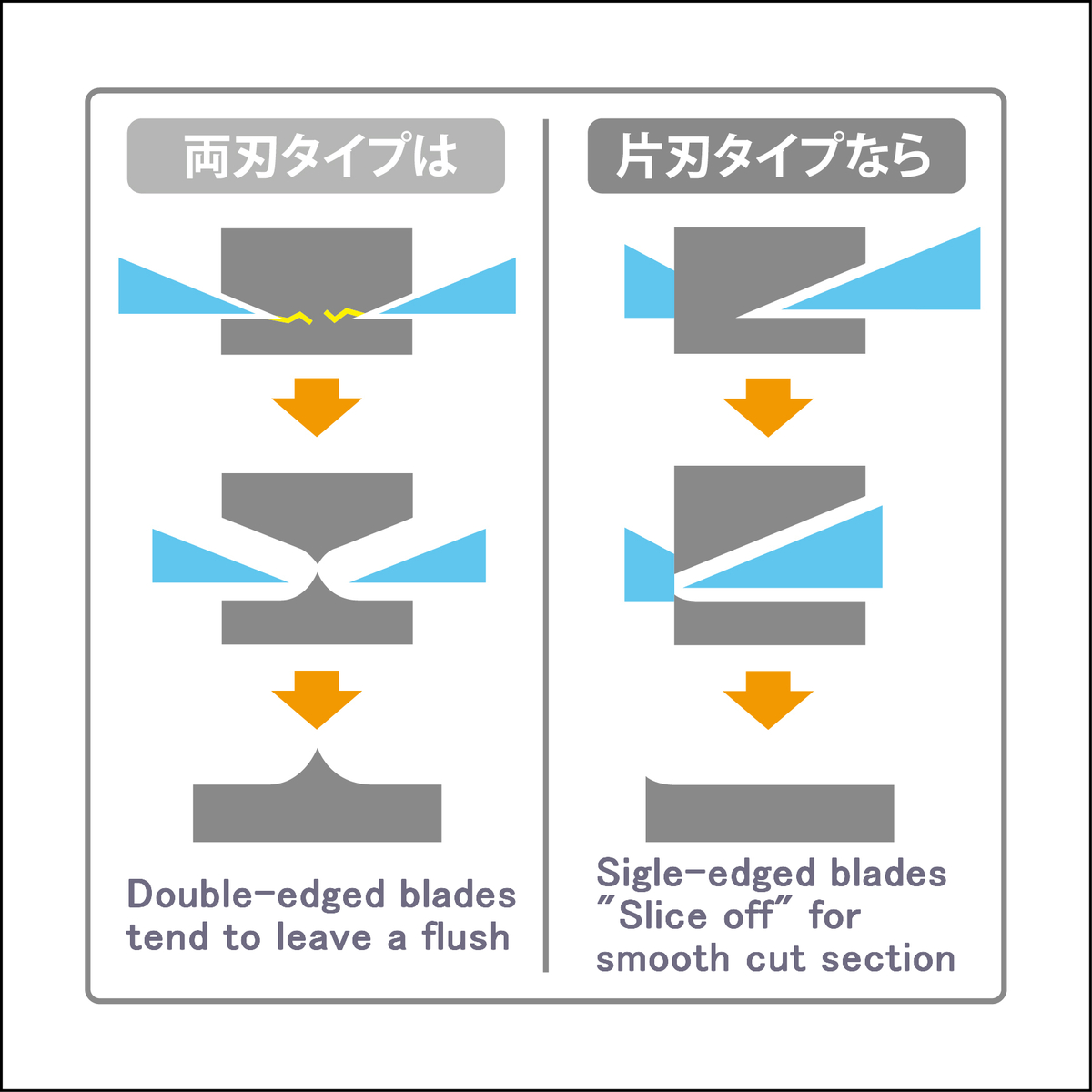

Single-edged blades can “slice off” hard plastic.
No flash left on the cut section and enable to save post processing work.
