90CS-125

Catch Nippers

  • ROUND BLADES
  • WITH SPRING
  • NON SCATTERING DEVICE

Most suitable to cut cable tie.
Two plates on the blades hold cut piece not to scatter.

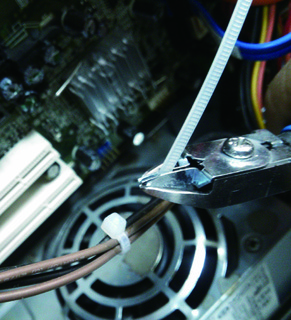

This Nippers are used for wiring/maintenance for PC, automobile, machinery etc. in order to prevent troubles caused by cut piece of cable tie remained inside.

  • SPECIFICATIONS
  • APPLICATIONS
  • MOVIE
Size(mm) 125mm
Weight(g/w) 85g/w
Cuttinng Performance Plastic φ2.0mm
Shatterproof ability φ0.8-2.0mm [Banding band:100-300mm]
Package size (H x W x D mm) 170x73x17mm
JAN 4952520009277

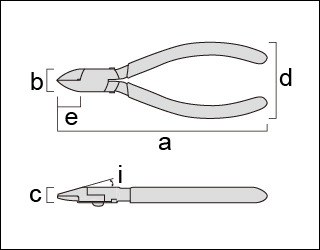

a 131mm
b 14mm
c 8.5mm
d 50mm
e 15.8mm
i 18°

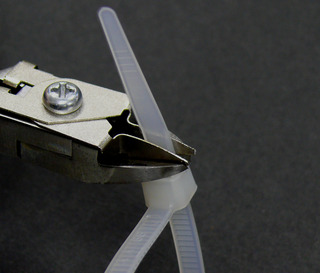

・Cut piece is caught by two plates on the blades and is surely hold without missing, which makes workers efficiency better.
・As cut piece is caught by plane surface, it is hold very strongly.

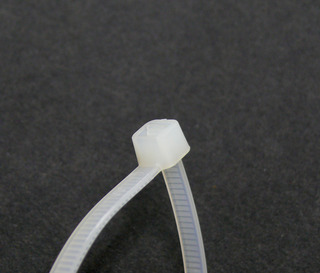

・Blade shape is designed suitable to plastic cutting so that possible to cut lightly and no burr remained which prevent hurt on fingers.

・Cut piece is caught by two plates on the blades and is surely hold without missing, which makes workers efficiency better.

・As cut piece is caught by plane surface, it is hold very strongly.

・Blade shape is designed suitable to plastic cutting so that possible to cut lightly and no burr remained which prevent hurt on fingers.
