FOS-185

Snap Ring Pliers External Open (Straight)

  • WITH SPRING

Use

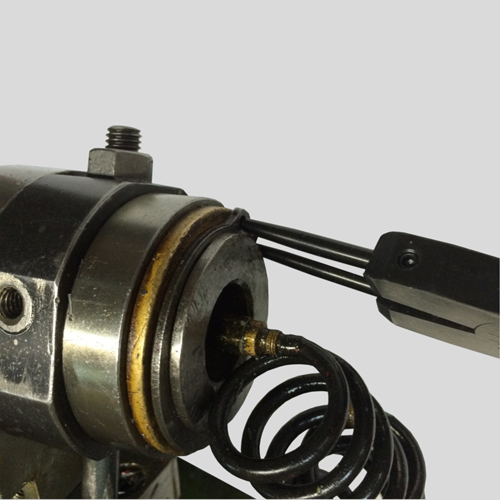

・ C-type snap ring (snap ring) attachment / detachment tool for machine tools and electronic equipment.
・ The tip opens when you hold the grip.
・ For shaft / straight nail
Features
-Since the tip of the claw is processed into a reverse taper shape, the snap ring is securely caught and does not slide down.
・ The nail can be replaced with one screw.

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 185mm
Weight(g/w) 175g/w
Diameter of the tip 2
Ring use range 10-40 mm
Package size (H x W x D mm) 223×73×20
Set Include 6
JAN 4952520040027
a 183mm
b 22mm
c 10mm
d 86mm
f 30mm
Replacement parts FB-1,FS-1,FS-L1,FS-L2

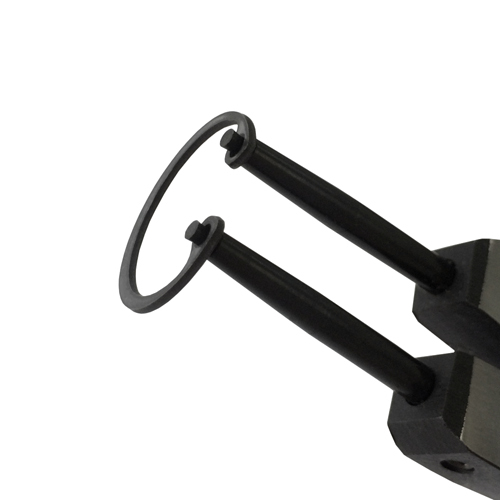

The tip of the claw is processed into a reverse taper shape, so it catches the snap ring securely and does not slip off.

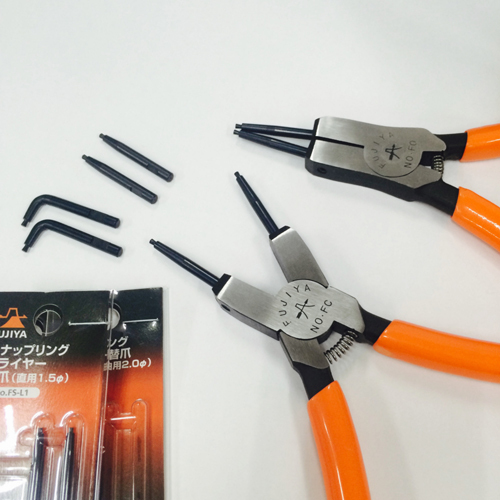

Detachable claws

Usable size of ring
