77A-200

Diagonal Cutting Nippers

  • STRAIGHT BLADES
  • MICRO MIRROR BLADE
  • ROHS

This style is light and thin.
*due to the blade being thin, these nippers will not cut through piano wire, spring wire, and wire cable.

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 200mm
Weight(g/w) 270g/w

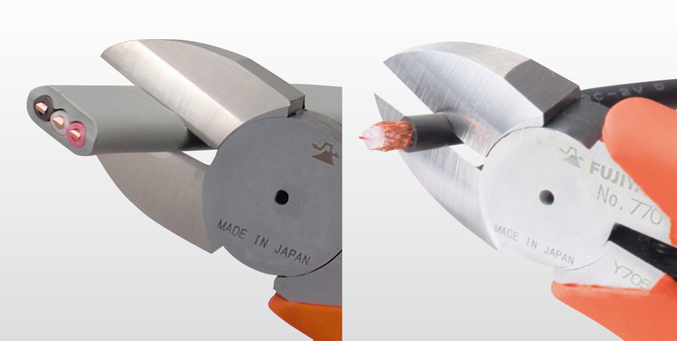

Cuttinng Performance Steel wire Φ2.5mm
Cuttinng Performance Coppre wire Φ3.5
Cuttinng Performance VA/VFF wire Φ2.6mm×3 core
Package size (H x W x D mm) 251×73×22
Set Include 6
JAN 4952520007143
a 200mm
b 25mm
c 13mm
d 52mm
e 25mm
i 17°

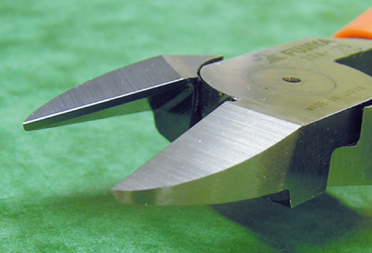

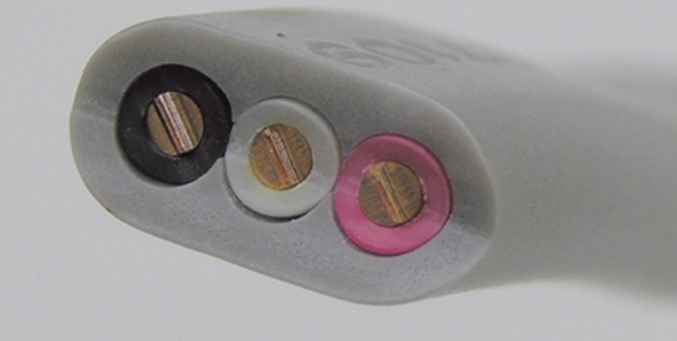

Micro Mirror blades:
the leading edge of polishing technology developed by FUJIYA, which achieve very keen blade and beautiful cut cross section.
