1050Z-175

Electrical Work Side Cutting Pliers

  • ROHS
  • SAFETY CORD HOLE
  • WITH INDENTATION

-WS are indented in order to assure that gripped items will not slip.
-Composite resin cover
-Able to cut steel and coppers
-This is not insulated

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 175mm
Weight(g/w) 315g/w
Cuttinng Performance Steel wire Φ3.0mm
Cuttinng Performance Coppre wire Φ3.5
Package size (H x W x D mm) 225×73×20
Set Include 6
JAN 4952520010679

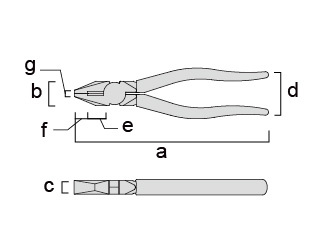

a 192mm
b 24mm
c 13.5mm
d 53mm
e 15mm

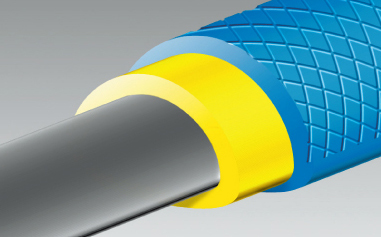

Composite resin cover.
Made to withstand up to 1000V (AC).
The interior layer is yellow, while the exterior is blue.
When the yellow is visible, it indicates "danger".
*Note: These aren't insulated
