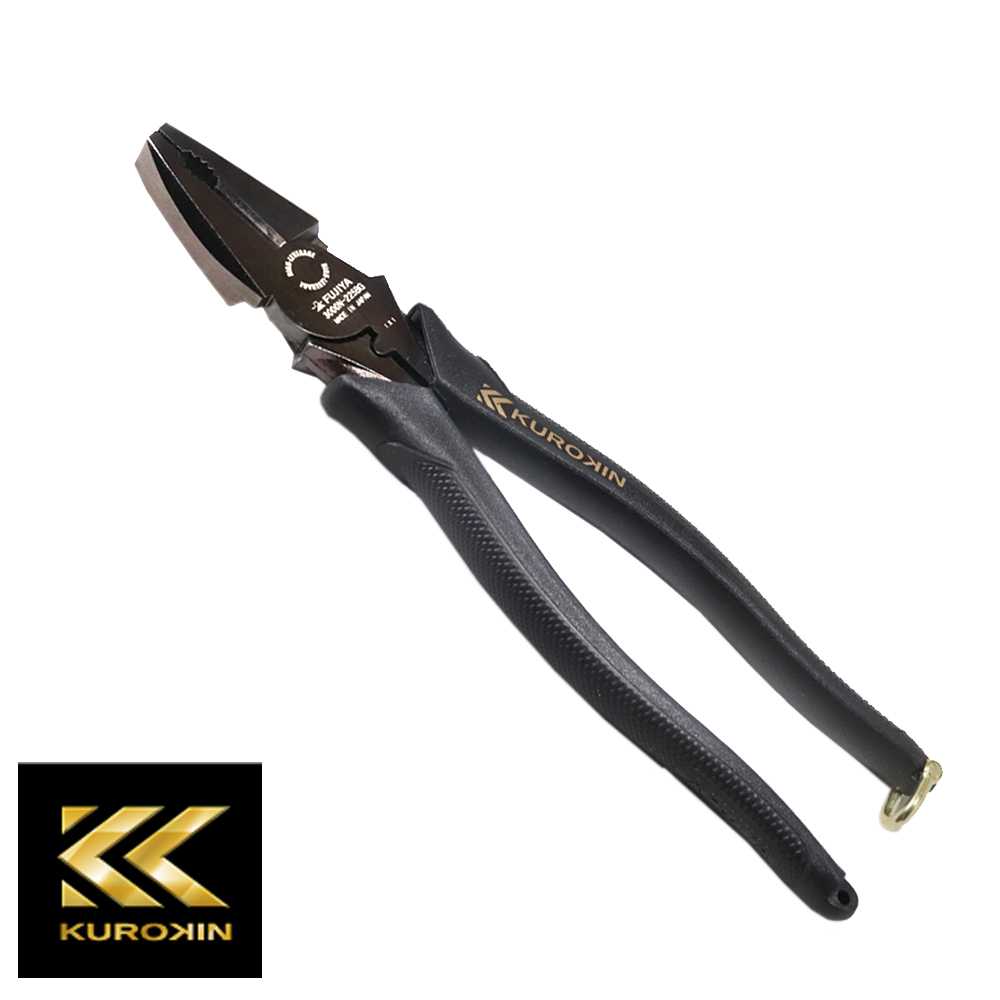

3000N-225BG

High Leverage Side Cutting Pliers

  • ROHS
  • SAFETY CORD HOLE
  • EASY CUTTING
  • CRIMPING FUNCTION
  • WITH INDENTATION

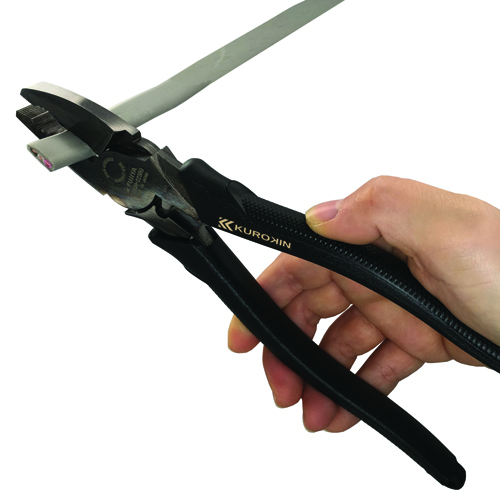

Diagonal blades make it easier to smoothly cut piano wire.

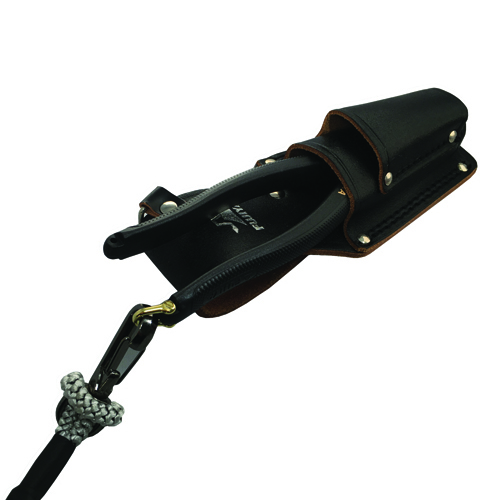

Metal fixing for attaching to safety cord.

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 225mm
Weight(g/w) 340g/w
Cuttinng Performance Steel wire Φ3.6mm
Cuttinng Performance Coppre wire Φ2.0mm
Cuttinng Performance Piano wire Φ2.0mm
Cuttinng Performance VA/VFF wire Φ2.6mm×3 core
Package size (H x W x D mm) 270×73×20
Set Include 6
JAN 4952520030899

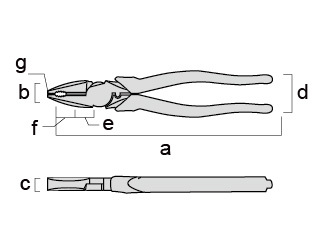

a 232mm
b 28mm
c 12mm
d 52mm
e 20mm
f 19mm
g 7mm

Having rivet placed closer to the cutting edges to provide more leverage.

Material fixing for attaching to safety code.
