Most suitable for cutting hard plastic, such as engineering plastic materials (POM, PA, PC, etc.).
Ideal for gate cutting works in injection molding.
-Single-edged blades enable to “slice off” plastic without leaving flash on the cut section.
-Coil spring is mounted for continuous cutting work.
-Straight blades type: HP940-150XF is also available.
| Size(mm) | 154mm |
|---|---|
| Weight(g/w) | 125gg/w |
| Cuttinng Performance Plastic | Hard resin DIA 5.0mm |
| Package size (H x W x D mm) | 200×73×14mm |
| Set Include | 6 |
| JAN | 4952520009314 |

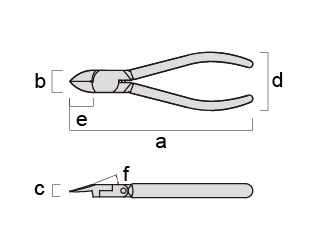

| a | 154mm |
| b | 17.5mm |
| c | 10mm |
| d | 50mm |
| e | 20mm |
| f | 15mm |

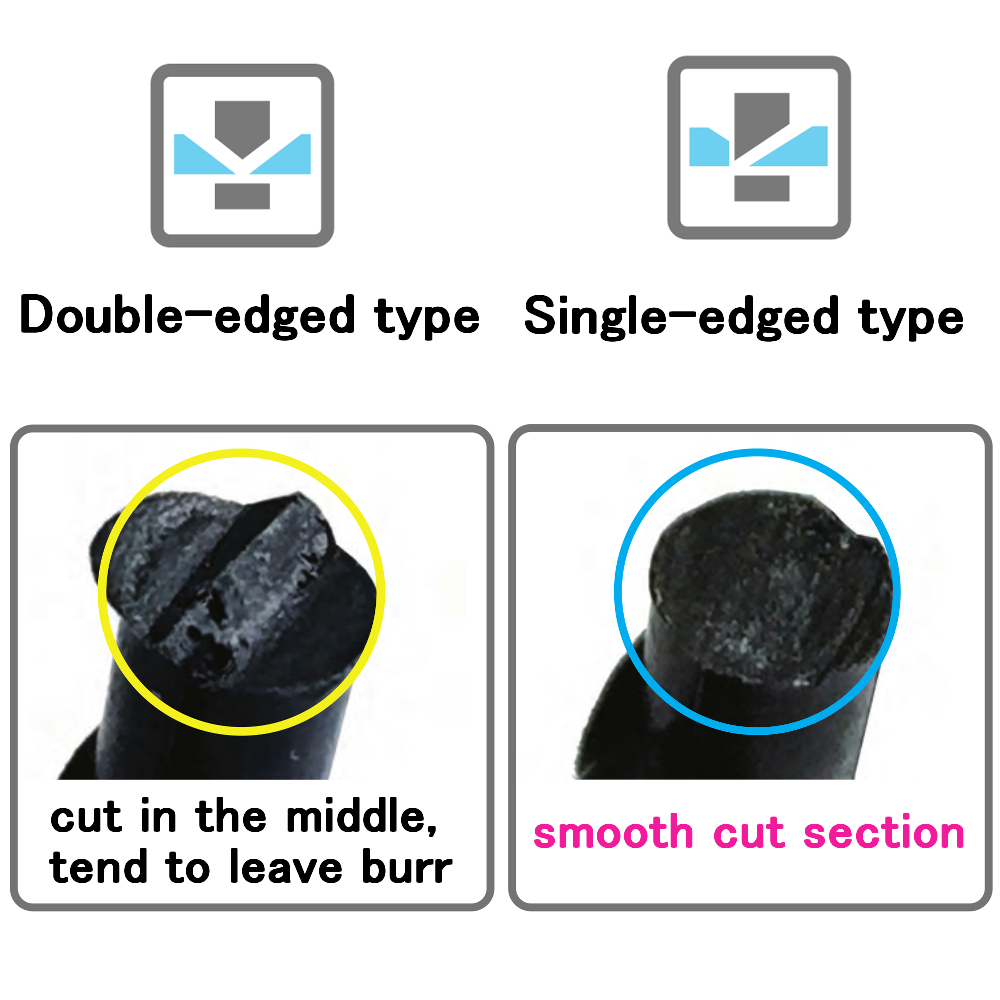

Blades are single edge type.

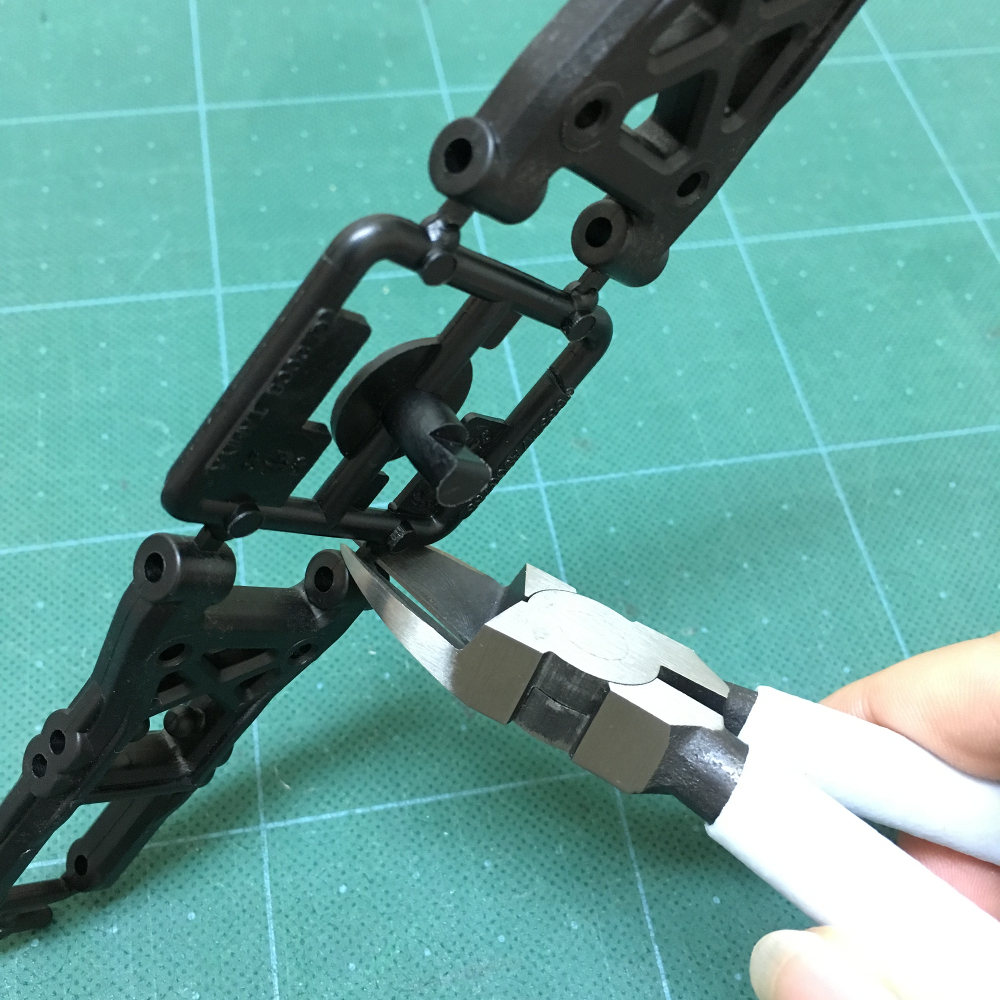

Suitable for gate cutting work in engineering plastic (ABS, PC, Polyamide) molding.
Single-edged blades can “slice off” hard plastic.
No flash left on the cut section and enable to save post processing work.
