PP323B-165

Wire Stripper B type 165mm

  • WITH SPRING
  • WITH INDENTATION
  • SOFT GRIP HANDLE
  • STOPPER FUNCTION

Applicable to conventional electric source stripping work on TV, AV, PC precision Equipment e.t.c...

-handy type with Light Weight and Compact
-Applicable to AWG30~16(0.05SQ~1.25SQ)
-Easy to be able to strip Core Wire of Electric Cable without crack

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 165mm
Weight(g/w) 140g/w
Adaptation wire size AWG 30/28/26/24/22/20/18/16
Adaptation wire size Core wire covering stripper 0.05/0.08/0.13/0.2/0.3/0.5/0.8/1.3
Package size (H x W x D mm) 215×95××20
Set Include 6
JAN 4952520083406

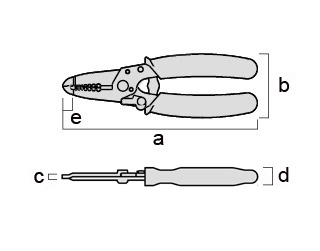

a 164mm
b 56mm
c 3mm
d 14mm
e 5.5mm
Old model PP313B-165

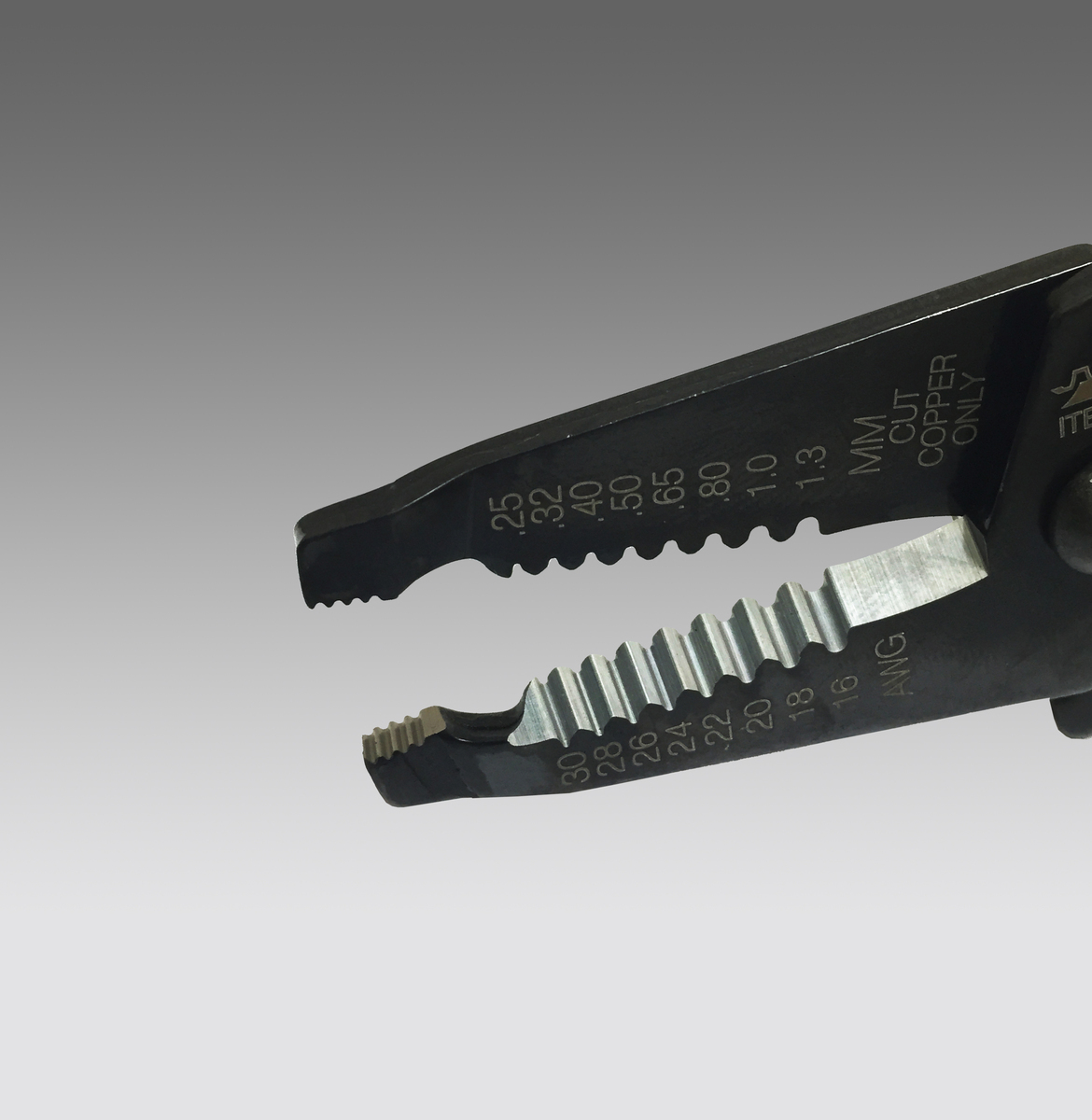

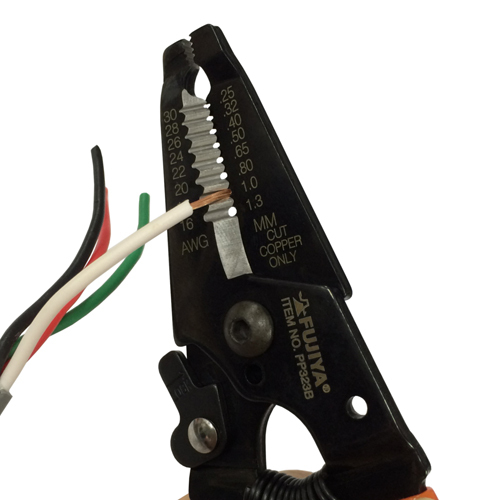

Stripping function
Wire Size:
AWG 30,28,26,24,22,20,18,16
SQ 0.05,0.08,0.12,0.2,0.3,0.5,0.75,1.25

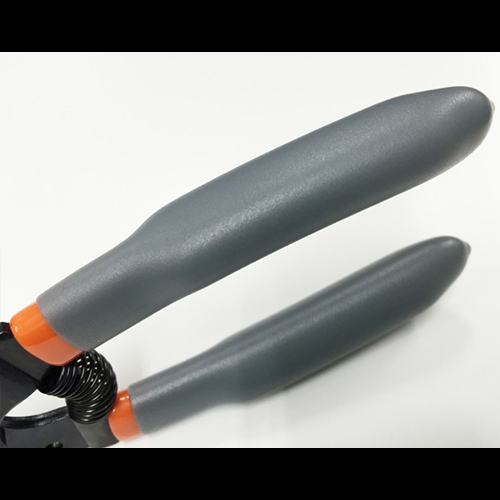

Soft grip handle

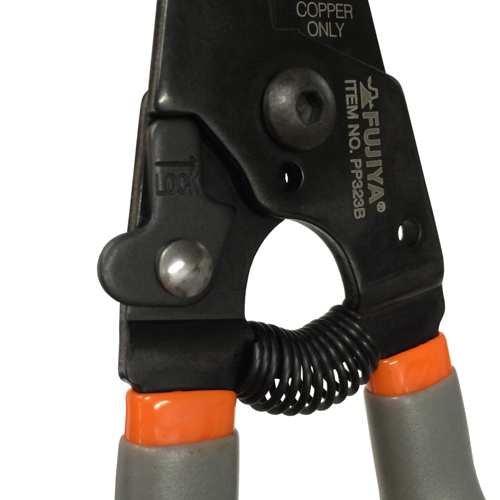

With spring
