3000TP-225
High-Leverage Side Cutting Pliers- Connector Crimping
Can be easy to cut more than our conventional product in ptinciple of eccentricity lever
HOME > PRODUCT > SIDE CUTTING PLIERS > 3000TP-225
Can be easy to cut more than our conventional product in ptinciple of eccentricity lever
| Size(mm) | 230mm |
|---|---|
| Weight(g/w) | 340g/w |
| Cuttinng Performance Steel wire | φ3.6mm |
| Cuttinng Performance Coppre wire | φ4.0mm |
| Cuttinng Performance Plastic | φ2.6mm×3core |
| Package size (H x W x D mm) | 270ｘ73ｘ20mm |
| JAN | 4952520030721 |

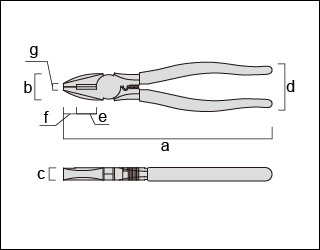

| a | 230mm |
| b | 28mm |
| c | 12mm |
| d | 52mm |
| e | 20mm |
| f | 19mm |
| g | 7mm |

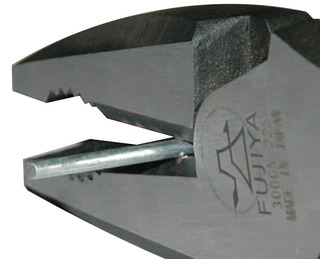

・Possible to cut Piano Wire due to used Finest Special Steel

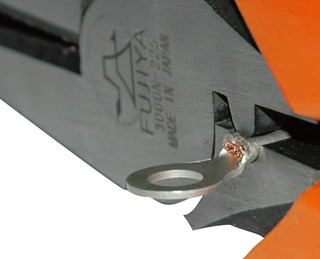

・Possible to Simple Crinmping for 1.25, 2.0, 5.5mm2

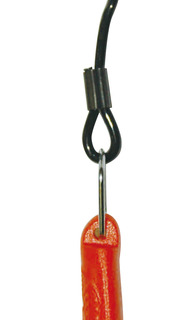

・Peace of mind in Height Work due to with safety hole

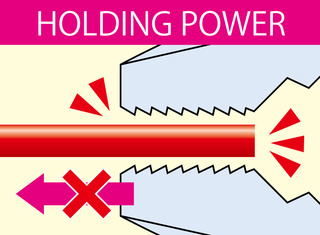

・Realizing Strong Holding Power and long life time due to high hardness in holding indentation structure.
