3000TP-200

High-Leverage Side Cutting Pliers- Connector Crimping

  • ROHS
  • SAFETY CORD HOLE
  • EASY CUTTING
  • CRIMPING FUNCTION
  • WITH INDENTATION

Can be easy to cut more than our conventional product in ptinciple of eccentricity lever

  • SPECIFICATIONS
  • APPLICATIONS
Size(mm) 202mm
Weight(g/w) 270g/w
Cuttinng Performance Steel wire φ3.4mm
Cuttinng Performance Coppre wire φ4.0mm

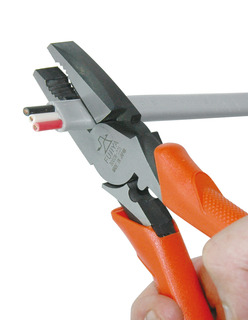

Cuttinng Performance Plastic φ2.0mm×3core
Package size (H x W x D mm) 253x73x20mm
JAN 49525200030745
a 200mm
b 26mm
c 11.5mm
d 52mm
e 18mm
f 18mm
g 6.3mm

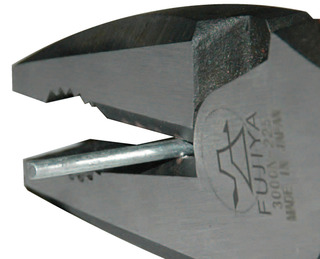

・Possible to cut Piano Wire due to used Finest Special Steel

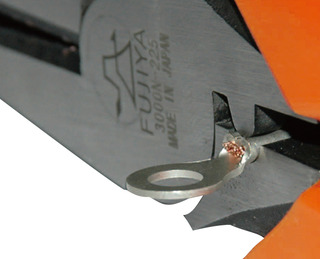

・Possible to Simple Crinmping for 1.25, 2.0, 5.5mm2

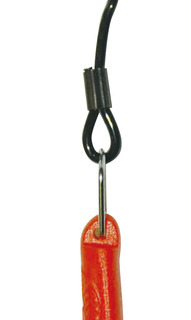

・Peace of mind in Height Work due to with safety hole

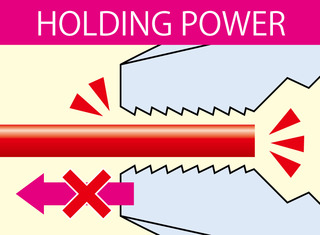

・Realizing Strong Holding Power and long life time due to high hardness in holding indentation structure.

・Possible to cut Piano Wire due to used Finest Special Steel

・Possible to Simple Crinmping for 1.25, 2.0, 5.5mm2

・Peace of mind in Height Work due to with safety hole

・Realizing Strong Holding Power and long life time due to high hardness in holding indentation structure.
